    1000kg Loading Capacity Semi Electric Stacker Truck With Adjustable Forks

    Ask Lasest Price
    Brand Name : JAC
    Model Number : CDD10B-III
    Certification : CE,ISO9001,ISO14001,OHSAS18001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000UNITS/MONTH
    Delivery Time : about 25 days
    • Product Details
    • Company Profile

    1000kg Loading Capacity Semi Electric Stacker Truck With Adjustable Forks

    Semi-electric Stacker Truck ,1000kg Loading Capacity , AC Power system, Adjustable Forks for option


    Advantages:
    • Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.

    • Handle-castor chain assist steering system greatly reduces the labor intensity.
    • Over-discharge protection device greatly prolongs the battery use time.
    • Overall type adjustable forks,which can be lowered to the same level of the legs.
    •Chain connect side wheel and handle, easy for steering.
    •Easy operating foot brake. service brake is mechanical.

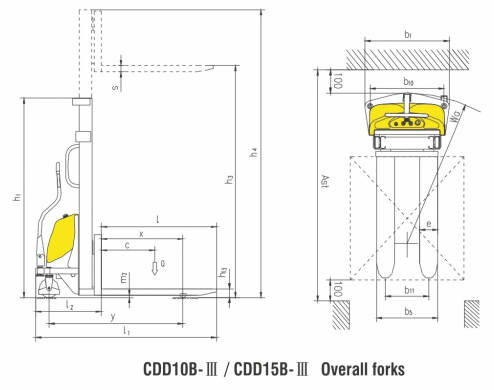

    Parameters:

    Model Overall forksAdjustable forks
    CDD10B-IIICDD10B-III
    Load capacityQ(kg)10001000
    Load centre distancec(mm)500500
    Load distance, centre of drive axle to forkx(mm)802745
    Tyre size , frontmmΦ180×50Φ180×50
    Tyre size , rearmmΦ80×70Φ80×70
    Wheels, number front rear(x= driven wheels) 2/22/2
    Fork height, loweredh139090
    Height, mast loweredh12090/1840/2090/2240/23402090/1840/2090/2240/2340
    Max. lift heighth3(mm)1600/2500/3000/3300/35001600/2500/3000/3300/3500
    Height, mast extendedh4 (mm)2090/3060/3560/3860/40602090/3060/3560/3860/4060
    Overall lengthl1(mm)16781735
    Length to face of forksl2 (mm)608665
    Overall widthb1(mm)800955
    Fork dimensionss/e/l (mm)60/170/107060/142/1070
    Width overall forksb5 (mm)570/695295-930
    Aisle width for pallets 800×1200 lengthwaysAst(mm)22672267
    Turning radiusWa(mm)14251425
    Lift speed , laden/unladenm/s0.07/0.090.07/0.09
    Lowering speed , laden/unladenm/s0.1/0.130.1/0.13
    Service brake mechanicalmechanical
    Battery voltage , nominal capacity K5V/Ah12/12012/120
    Battery weightkg4545
    Battery dimensions l/w /hmm360x170x250360x170x250
    Service weight (with battery)kg355/410/445/475/495385/440/475/505/525
