Counterbalance Electric Forklift Truck 1.8 Ton Capacity With AC Power System

ANHUI JAC INTERNATIONAL CO., LTD.
Contact Now
    Buy cheap Counterbalance Electric Forklift Truck 1.8 Ton Capacity With AC Power System from wholesalers

    Buy cheap Counterbalance Electric Forklift Truck 1.8 Ton Capacity With AC Power System from wholesalers
    • Buy cheap Counterbalance Electric Forklift Truck 1.8 Ton Capacity With AC Power System from wholesalers

    Counterbalance Electric Forklift Truck 1.8 Ton Capacity With AC Power System

    Ask Lasest Price
    Brand Name : JAC
    Model Number : CPD18
    Certification : CE,ISO9001,ISO14001,OHSAS18001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000UNITS/Month
    Delivery Time : 25 working days
    • Product Details
    • Company Profile

    Counterbalance Electric Forklift Truck 1.8 Ton Capacity With AC Power System

    Counterbalance Electric Forklift truck , Load Capacity 1.8 Ton , AC Power System , Red Color


    Electric forklift are powered by electric motors, and operate via robust traction batteries with a long service life.

    Using an electric forklift, you have no need to worry about the noise and exhaust gas pollution. As people attaching importance to environmental protection, electric forklift are gradually replacing the internal combustion forklifts.


    Advantages:

    1. The foot brake pedal is installed slightly higher than the Curtis kernel accelerator for a ergonomic design.

    2. Comfortable seating features an adjustable backrest, elastic seatbelt and mechanical shock absorber installed at the base of the seat.

    3. Batteries with different capacities are available.

    4. The shock-absorbing steering axle of our fork truck greatly improves the comfort level of operation.

    5. All cables are equipped with insulating caps and are insulated and waterproof.

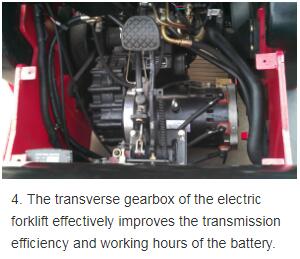

    6. Horizontally arranged transmission device enhances driving efficiency and prolongs the duration of the battery.

    7. Wide-opening counterweight makes it convenient to repair the controller.

    8. Rear-mounted lifter motor is easy to repair.

    9. The high-performance power supply of our electric powered forklift truck is easy to plug and unplug.

    10. One-piece framework improves strength.

    11. Streamlined design includes an integrated tail lamp.

    12. Curtis LED screen displays important information directly so the operator can troubleshoot problems quickly.

    13. Controller imported from the brand Curtis.

    14. The steering wheel's short diameter makes it lightweight and easy to maneuver.

    15. Receipts, invoices, and other files can be stored inside the right side of engine hood.

    16. The JAC lift truck's main power supply switch protects the electrical control system and prevents accidents.

    17. New foot brake with good friction shortens the braking distance by l-1.3m.

    Parameters:

    ModelUnitCPD18J
    1Load Capacitykg1800
    2Load Centermm500
    3Mast Lifting Heightmm3000
    4Mast Free Liftingmm120
    5Forkmm920×100×40
    6Mast Tilt( FR/RR).6/10
    7Turning Radiusmm2030
    8Ground Clearancemm93
    9Height of Overhand Guardmm1020
    10Overhang (FR)mm407
     Max.Speed(load)km/h12
    12Max.Lifting Speed(load)mm/s260(BC)280(AC)
    13Max. Gradeability%1515
    14Overall length(No fork)mm2220
    15Overall Widthmm1072
    16Wheelbasemm1370
    17TreadFron/Rearmm894/920
    18Service Weightkg3120
    19BatteryVoltage/CapacityV/Ah48/500
    20MotorTravelingKW8
    21LiftingKW7.510
    22Way of Control BCAC
    23Operating PressureMpa15.5
    24Max.Drawbar PullKN13
